How to Setup Your FaxBridge Out Of the Box

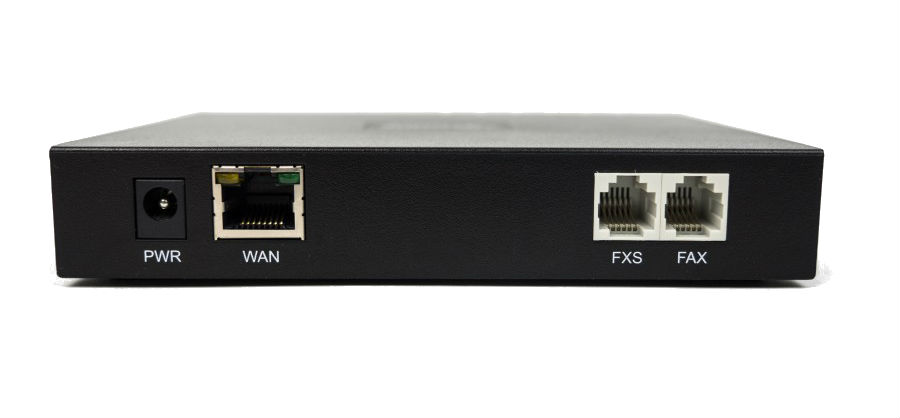

On the back of the device you will have the following ports; Connect them in this order:

• FAX port connects to the LINE port of your MFP or fax machine (use RJ11 cord provided)
• WAN port connects to the internet (use ethernet cord provided to plug directly into a wall port, switch or router)
• PWR port plug into standard 110v power outlet (only use the power supply that came with the device)

Once plugged in, the bridge will come on within a few minutes (depending on your network). The power light should be lit upon plugging the device in and once your Fax Bridge is assigned an IP address the SYS light should light up. You are now ready to send and receive faxes through the device.
